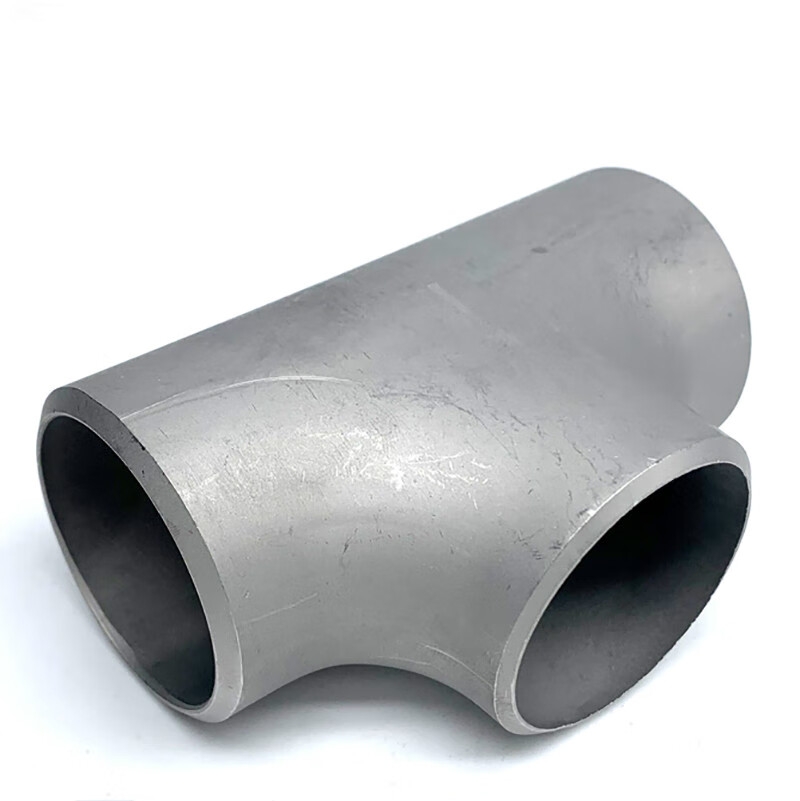

Stainless steel tees are pipe fittings and pipe connectors. Used where main pipes need to branch. Stainless steel tees are divided into equal-diameter and reducing-diameter tees. The ends of the equal-diameter tees are all the same size; the pipe ends of the main pipes of the different-diameter tees are the same, and the pipe ends of the branch pipes are smaller than the pipe ends of the main pipe.

Stainless steel tee is a pipe fitting used at pipe branches. For the use of seamless pipes to manufacture tees, the commonly used processes are hydraulic bulging and hot press forming. Hydraulic bulging of stainless steel tees is a forming process that expands branch pipes through axial compensation of metal materials. The process is to use a special hydraulic press to inject liquid into the tube blank with the same diameter as the tee, and squeeze the tube blank through the synchronous centering movement of the two horizontal side cylinders of the hydraulic press. The volume of the tube blank becomes smaller after being squeezed, and the inside of the tube blank becomes smaller. The pressure of the liquid increases as the volume of the tube becomes smaller. When the pressure required for the expansion of the stainless steel tee branch is reached, the metal material flows along the inner cavity of the mold under the dual action of the liquid pressure in the side cylinder and the tube and expands the branch. .

The hydraulic bulging process of the stainless steel tee can be formed in one step, and the production efficiency is high; the wall thickness of the main pipe and shoulder of the stainless steel tee is increased.

Due to the large tonnage of equipment required for the hydraulic bulging process of stainless steel tees, it is mainly used in the country to manufacture stainless steel tees with standard wall thickness less than DN400. Its suitable forming materials are low carbon steel, low alloy steel, stainless steel with relatively low cold work hardening tendency, including some non-ferrous metal materials, such as copper, aluminum, titanium, etc.

According to manufacturing standards, they can be divided into national standards, electrical standards, water standards, American standards, German standards, Japanese standards, Russian standards, etc. The details are as follows: GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409, HG/ T21635,DL/T 695,SY/T 0510,DIN 2615.
